Forums > Hardware Forum

BenQ XL2411T repair (42 comments)

( Forum: HW)

Posted by steffo @ 14:27 CDT, 15 July 2016 - iMsg

Hi there,

one month ago my xl2411t started showing static:

I fixed it by replacing the capacitors on the power pcb.

Since that happened to a couple of friends as well, i made a quick replacement guide
here.

How to fix damaged electrolytic caps

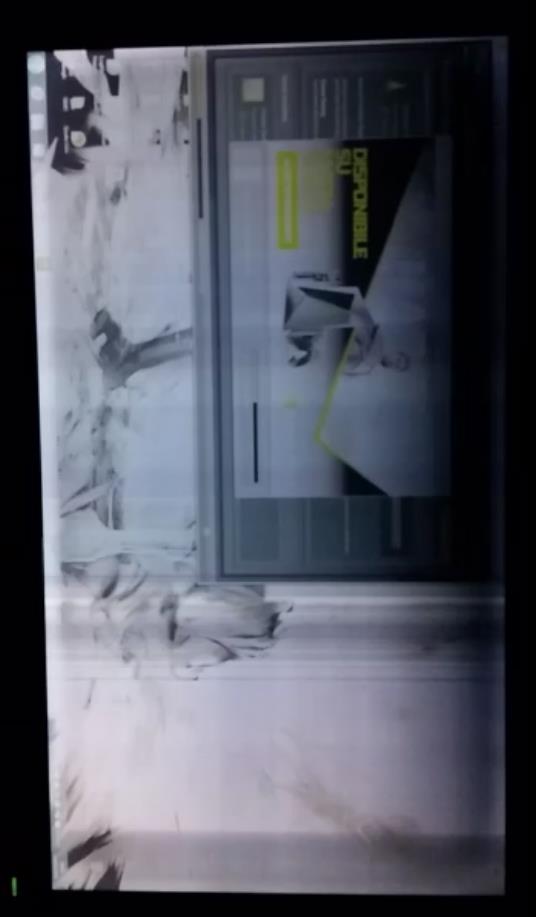

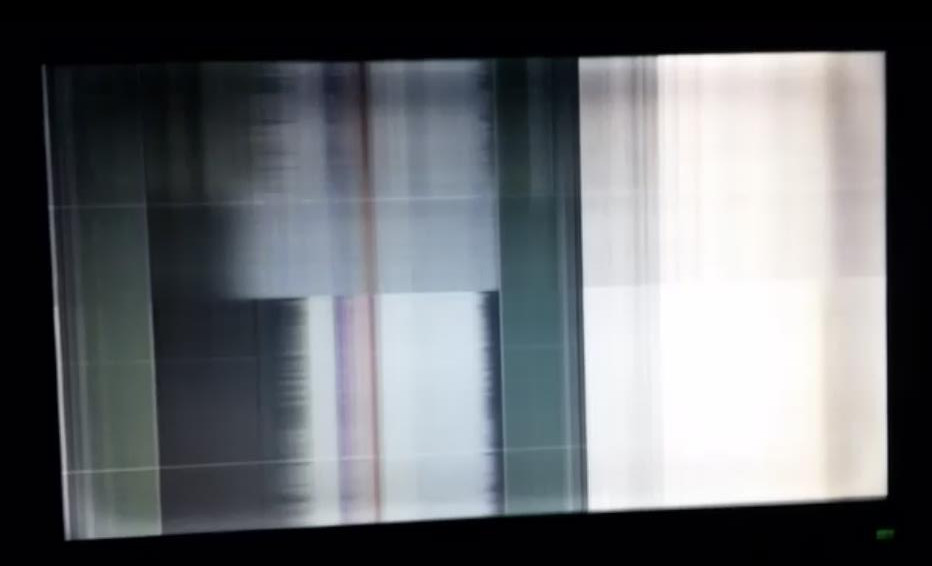

Symptom: after monitor’s splash screen, image is totally distorted.
At start, the issue solves itself after seconds or minutes,
then it persists until the screen can’t even turn on.

Attached Misc File: 115030-18d1-benq-xl2411t-caps-repair.pdf (13 Apr 2022, 3662KB, 671 downloads)

Edited by Teen Queen at 13:31 CDT, 13 April 2022 - 31123 Hits

43%

<< prev HW thread || next HW thread >>

<< Comment #1 @ 00:39 CDT, 3 October 2016 >>

By

Anonymous (36.85.221.247)

can't download the file..

<< Comment #2 @ 02:22 CDT, 5 October 2016 >>

By

steffo - Reply to #1

Are you sure? It still works for me.
Anyway, alt link here.

<< Comment #3 @ 11:39 CDT, 22 October 2016 >>

By

Anonymous (5.51.3.44)

thank you steffo,

just finished to replace the faulty capacitors, my XL2411t working fine again :)

<< Comment #4 @ 05:22 CST, 25 January 2017 >>

By

Anonymous (36.82.223.96)

bro i cant download the file cause expired can you reupload please ?

<< Comment #5 @ 20:23 CST, 28 January 2017 >>

By

steffo - Reply to #4

The topic link on the OP is working.

<< Comment #6 @ 10:33 CDT, 13 June 2018 >>

By

Hello steffo!
Any chance you could reupload the file?
Getting this error from your link:
File was deleted from server.
File was deleted by owner or exceeded maximum storage time (100 days from last download).

And this from your alt link: File not found

Thanks in advance!

<< Comment #7 @ 02:07 CDT, 15 June 2018 >>

By

BaMoFu - Reply to #6

I actually think I might have a copy of the pdf somewhere, will post if I find it.

<< Comment #8 @ 03:20 CDT, 15 June 2018 >>

By

EmSixTeen - Reply to #7

If you do, I'd like to dl it too.

<< Comment #9 @ 07:43 CDT, 15 June 2018 >>

By

BaMoFu

Try here:

http://www.filedropper.com/18d1-benq-xl2411t-caps-repair

<< Comment #10 @ 22:51 CDT, 15 June 2018 >>

By

screensavr - Reply to #9

Thank you very much!

<< Comment #11 @ 04:30 CDT, 16 June 2018 >>

By

BaMoFu - Reply to #10

Np!

<< Comment #12 @ 14:27 CDT, 25 June 2018 >>

By

this happened to me a few months ago and I replaced it with a viewsonic xg2401

<< Comment #13 @ 13:53 CDT, 15 September 2018 >>

By

Anonymous (81.159.31.162)

Sorry to necro, but would very much appreciate if anyone could rehost the guide, all the links are down

<< Comment #14 @ 06:58 CDT, 16 September 2018 >>

By

BaMoFu - Reply to #13

I'l try to post it today or tomorrow.

<< Comment #15 @ 12:01 CDT, 16 September 2018 >>

By

steffo - Reply to #13

http://s000.tinyupload.com/index.php?file_id=69154508671757037773

<< Comment #16 @ 05:07 CDT, 20 September 2018 >>

By

Anonymous (109.158.218.126) - Reply to #15

Brilliant, just posting back to say I may be anon, but appreciate it!

<< Comment #17 @ 11:51 CDT, 20 September 2018 >>

By

nvc

Yeah I replaced the capacitors on my XL2411T a while back too!

<< Comment #18 @ 07:37 CDT, 30 June 2020 >>

By

Niel_1

Thank you steffo, I managed to repair my 8yo XL2411T with your amazing guide, I had 4 capacitors dead on the power PCB. i paid less than 5 euros for the capacitors and fixed it myself.

<< Comment #19 @ 12:36 CDT, 5 August 2020 >>

By

Zundrev

This is an old monitor without displayport, its cheap but has many issues.

<< Comment #24 @ 06:44 CDT, 30 October 2021 >>

By

evil_ash - Reply to #19

displayport sucks

<< Comment #20 @ 08:19 CDT, 29 April 2021 >>

By

Anonymous (88.97.41.3)

Sorry for necro but does anyone still have the guide? The other links are dead.

<< Comment #21 @ 15:41 CDT, 17 May 2021 >>

By

steffo - Reply to #20

https://easyupload.io/4navjc

Edited by steffo at 15:43 CDT, 17 May 2021

<< Comment #22 @ 11:29 CDT, 25 October 2021 >>

By

Anonymous (145.254.187.148)

can you pls reupload that file again? It's already down.

<< Comment #23 @ 06:32 CDT, 30 October 2021 >>

By

evil_ash

long live the XL2411T

https://easyupload.io/vb8vgi

Edited by evil_ash at 06:36 CDT, 30 October 2021

<< Comment #25 @ 08:41 CST, 12 December 2021 >>

By

Anonymous (188.141.66.241)

Hi,

Can someone please reupload that guide? Looks like all of the current links are dead.

<< Comment #26 @ 07:20 CST, 14 December 2021 >>

By

evil_ash

https://easyupload.io/mn0r0b

its going to expire in 30 days again.

If anybody can recommend a upload site with a longer expiary i might upload it there

<< Comment #27 @ 06:13 CST, 4 March 2022 >>

By

Anonymous (188.252.198.44)

Hello,
The latest links are also dead. Could you please reupload them somewhere ?
I will try to put it on some drive so that it stays available in the future.

Thanks !

<< Comment #28 @ 06:41 CST, 4 March 2022 >>

By

Used to have them on my old HD, I believe there was also a gallery on ESR but I can't find it.

I think I repaired it using steffo's guide

<< Comment #29 @ 20:10 CST, 5 March 2022 >>

By

evil_ash

https://easyupload.io/l48bgg

<< Comment #30 @ 07:17 CST, 6 March 2022 >>

By

Teen Queen ' - Reply to #29

Can I add these to the post gallery? That way it should stick around longer than these links

<< Comment #31 @ 23:57 CST, 7 March 2022 >>

By

evil_ash - Reply to #30

It's not my document I just saved a copy. It was originally posted by OP of this thread.

I dont see the problem to save it to the gallery as it was already shared on this forums for everybody.

Do it.

Edited by evil_ash at 00:00 CST, 8 March 2022

<< Comment #36 @ 19:12 CDT, 8 April 2022 >>

By

Anonymous (202.179.66.187) - Reply to #31

Hello brother can you share again please.

<< Comment #32 @ 13:49 CST, 10 March 2022 >>

By

steffo - Reply to #30

please remove last page ;)

<< Comment #33 @ 04:18 CST, 11 March 2022 >>

By

Teen Queen ' - Reply to #32

It's essential to have the porco dio at the end

<< Comment #34 @ 09:02 CDT, 6 April 2022 >>

By

Anonymous (103.121.72.120)

hi i have the same issue, could someone pls reupload.
thankyou so much.

<< Comment #35 @ 01:38 CDT, 8 April 2022 >>

By

Anonymous (103.121.73.230)

Hello, can someone pls re-upload or direct me to the correct way for this, im in desperate need of the guide.

<< Comment #37 @ 10:45 CDT, 13 April 2022 >>

By

evil_ash

https://easyupload.io/sbd6ln

Edited by evil_ash at 10:54 CDT, 13 April 2022

<< Comment #38 @ 13:32 CDT, 13 April 2022 >>

By

Teen Queen ' - Reply to #37

had some issues with img placement so I uploaded the file itself, thanks for reuploading

<< Comment #39 @ 09:42 CDT, 16 April 2022 >>

By

Anonymous (103.121.72.239) - Reply to #37

thankyou sir

<< Comment #40 @ 15:30 CDT, 31 May 2022 >>

By

Anonymous (188.80.9.200)

Hi, can you re-upload thanks!

<< Comment #41 @ 15:33 CDT, 31 May 2022 >>

By

Lam | - Reply to #40

It's now attached to the original post, check the "Attached Misc File" ;)

<< Comment #42 @ 01:44 CDT, 2 June 2022 >>

By

Teen Queen ' - Reply to #41

Just because I can't even embed images properly :(

Also can't make multipage with place img.
